Description
CLEVER PROTECTION FOR SMART TECHNOLOGY

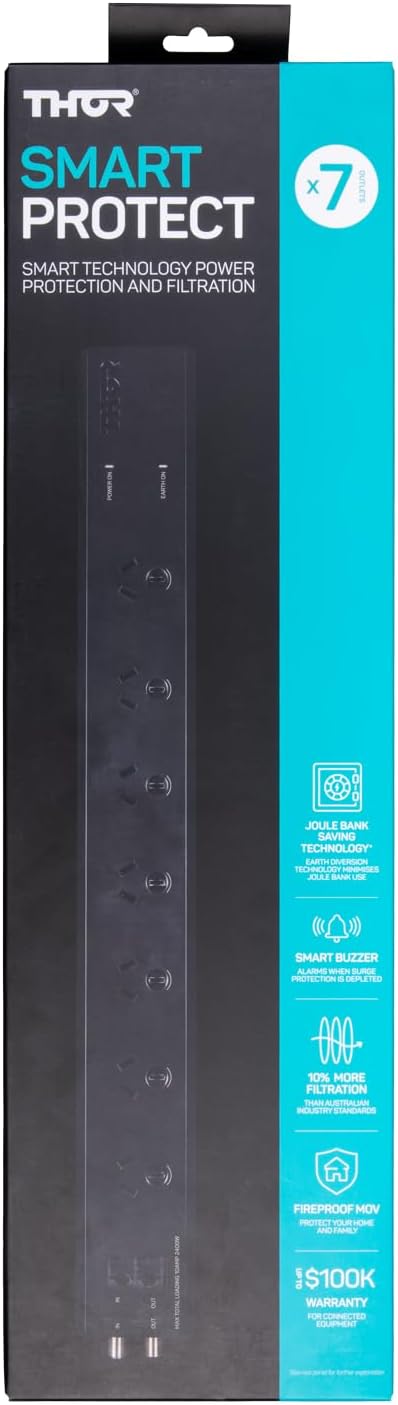

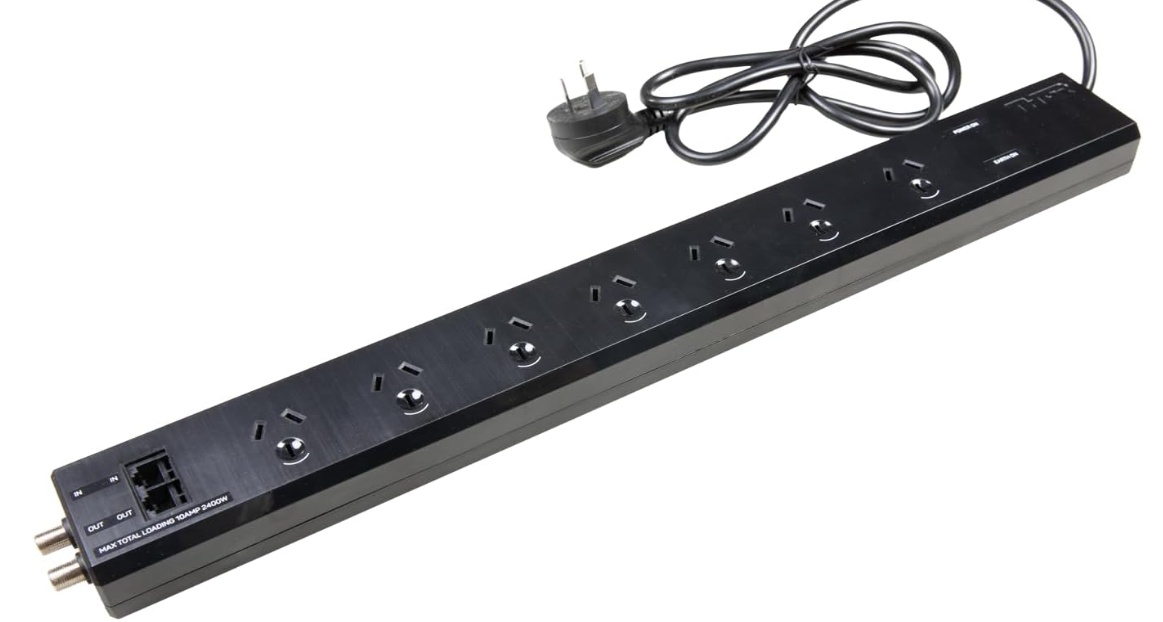

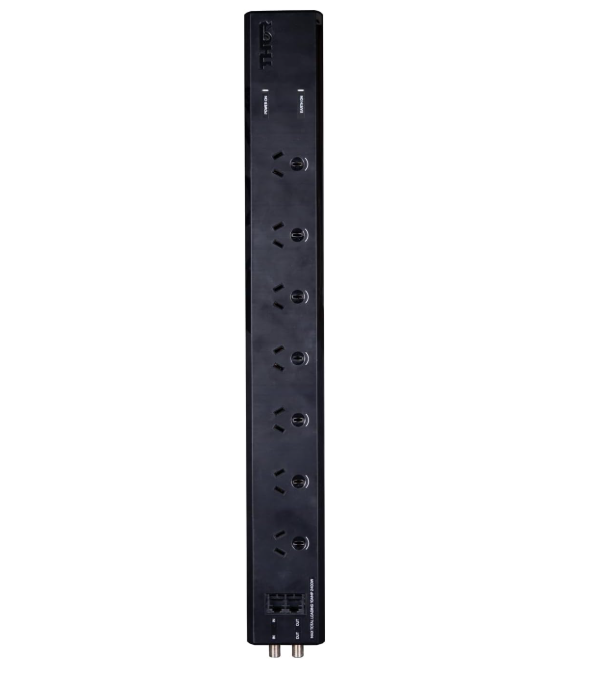

SmartFilter 7 is a popular board because of its slimline profile. The SmartBrain passive filter adds to the industry leading protection capability offering an all round solution.
Technical Smarts
- Product Dimensions: 470mm(L) x 33mm(H) x 75mm(W)
- Supply voltage 230-240/V AC 50/Hz
- Maximum current rating 10amps/2400 W (VA)
- Reaction time less than 1 nanosecond
- Clamping voltage 510V AC
- Maximum energy dissipation 2115 Joules (equivalent to 705 Joules using UL1449 standard)
- Protection modes (all 7 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
- EMI/RFI noise reduction filter type
- Total number of protected AC outlets: 7
- Antenna ‘F’ type connection: 1 in and 1 out
- RJ 45 data protection: 1 in and 1 out
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/+60C
- Cable length: 1.2m
- Model No: D1/45A
